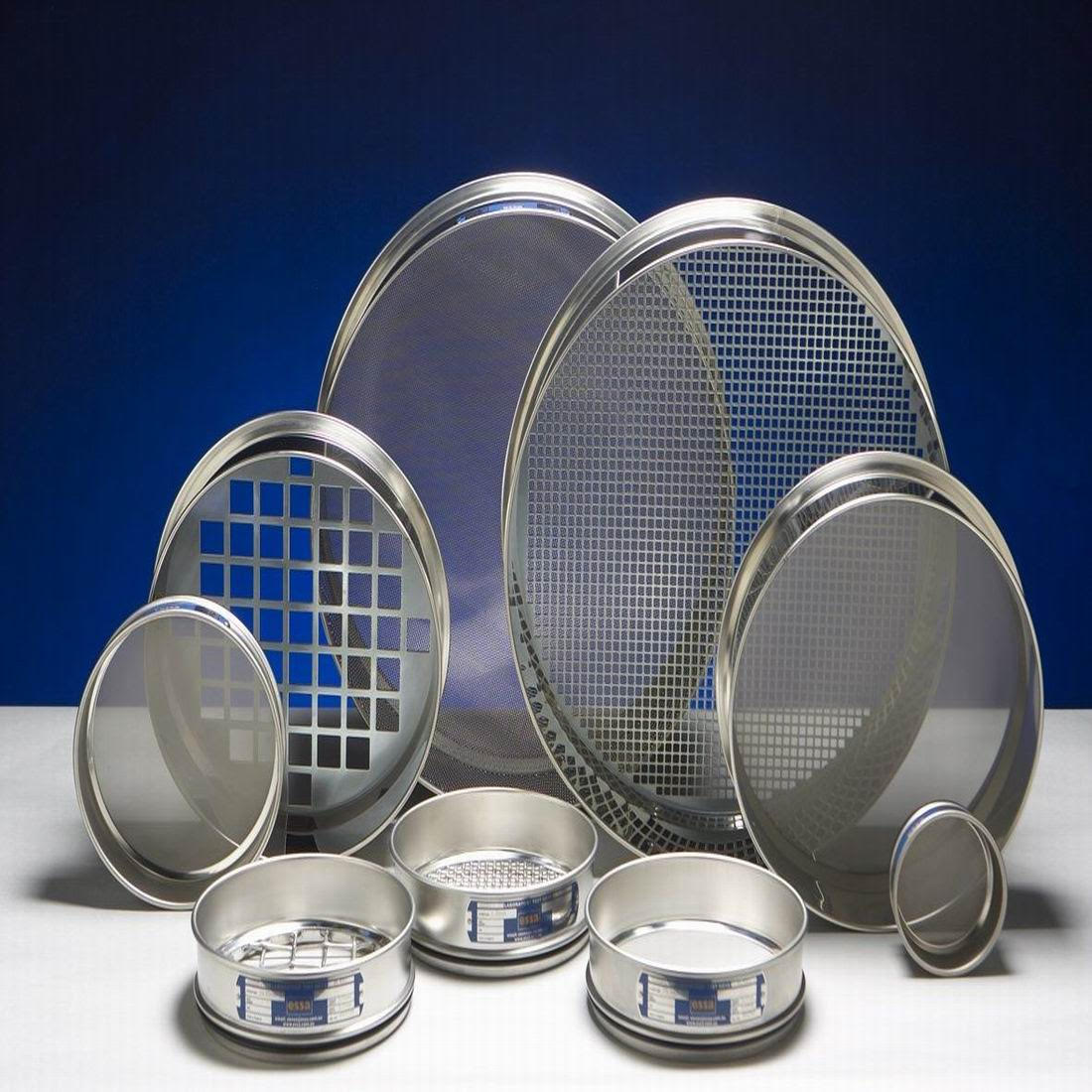

MESH CERTIFIED TEST SIEVES (MCTS)





Mesh Certified Test Sieves (MCTS) are ISO, BSS & ASTM standard test sieves for safe and accurate results and are designed for precise and efficient Grain analysis, Particle size analysis, Powder sieving, Soil, and Coal testing, Sieve Testing for laboratory and industries purposes. For the highest quality particle size analysis, you cannot buy a test sieve better than Laboteck’s certified test sieves. The combination of their many characteristics and the quality of manufacture makes these screens a perfect measuring instrument. Lid and collecting containers, in brass or stainless steel, 3 “, 8”, 12 “, 18”, 38 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 315 mm, 350 mm, 400mm, 450 Available in mm diameters.

The certified sieves are equipment whose main function is to efficiently separate particles of different sizes in different materials. Thus, the particles are spread on a mesh screen and are separated into strata. Each test sieve is produced using quality materials within the scope of Quality Assurance System procedures. In the production process, it is controlled by wire mesh, optical projection, or advanced computer scanning techniques. As a result of meticulous measurements, the products whose mesh clearances and pulley sizes are confirmed are given a certificate of conformity. It is manufactured in accordance with the highest engineering standards.



CERTIFIED CALIBRATED SIEVES

We offer mesh-certified test sieves to meet national and international specifications and standards. Each has a certificate of conformity and is individually numbered to ensure traceability. These certified sieves are calibrated according to your specification. Each sieve is provided with a calibration test certificate that informs its range and measurement tolerance values. Each sieve undergoes calibration tests with traceable standards and the test results are linked to its record and serial number.



MESH CERTIFIED TEST SIEVES APPLICATION:

  • Separation
  • Fractionation
  • Granulometric
  • Determination



MESH CERTIFIED TEST SIEVES APPLICATION FIELD:

  • Agriculture / Food / Biology
  • Engineering / Electronics
  • Geology / Metallurgy
  • Building Materials
  • Medicine / Pharmaceuticals
  • Environment / Recycling
  • Chemistry / Plastics
  • Glass / Ceramics & More



MESH CERTIFIED TEST SIEVES SPECIFICATION:

  • Material: Brass or Stainless Steel
  • Frame Diameter Sizes: 38, 100, 150, 200, 250, 300, 315, 350, 400 and 450 mm
  • Aperture Sizes (Mesh Sizes): 125 mm – 20 µm
  • Norms and Standards: ISO, BSS & ASTM



Testing Sieves Mesh Chart

BSS ASTM ISI Microns MM
4 5 480 4.75
5 6 340 1812 3.35
6 7 280 2411 2.80
7 8 240 2207 2.36
8 10 200 2057 2
10 12 170 1698 1.70
12 14 140 1005 1.40
14 16 120 1200 1.18
BSS ASTM ISI Microns MM
16 18 100 1000 1
18 20 85 850 0.850
22 25 70 710 0.710
25 30 60 600 0.600
30 35 50 500 0.500
36 40 40 425 0.425
44 45 35 355 0.355



WHY CHOOSE & BUY LABOTECK’S MESH CERTIFIED TEST SIEVES?

Laboteck offer techno-scientific solutions that represent the state of the art in equipment for testing and analysis, quality control, production, research, and development. With several years of experience in the market. We can also provide your laboratory with calibration standards that allow you to accurately test and calibrate your sieves yourself, in just a few minutes. Laboteck has a specialized team with support and technical assistance. Due to its experience and high technical knowledge. In order to provide its customers with the opportunity to supply a wide range of test sieves with national/international standards and calibration, the guarantee is given by the manufacturer. We provide mesh-certified test sieves to customers with personalized service.
