Fully Automatic Chemistry Analyser equipment used to carry out dry chemistry is extremely simple to use, minimizing operator intervention which will be limited to the simple insertion of patient data, the owner and the dispensing of blood into the rotor. There will therefore be no need to carry out checks and calibrations as in liquid chemistry. From an economic point of view, it is suitable for medium-low workloads. Laboteck Fully Automatic Chemistry Analyser is a fully automated veterinary clinical chemistry analyzer. Use whole blood, serum or plasma. It is easy to use and requires no special operational skills. The machine automatically centrifuges, mixes and dilutes the samples. The report is available in several minutes. Only 3 simple steps are needed:

  1. Dispense the sample into the rotor.
  2. Enter the rotor and master data.
  3. Read the result to quickly make a clinical decision

FULLY AUTOMATED URINE CHEMISTRY ANALYZER

The Fully Automated Urine Chemistry Analyzer, from Laboteck, is an automated urine chemistry analyzer, fast and reliable, using test strips and includes advanced technologies such as refractometer by flow chamber, which gives accurate results of specific gravity and opacity; and reflectance photometry with an intelligent CMOS (Metal Oxide Semiconductor Sensor) color sensor, whose optimized detection area automatically scans the pad position of each chemical strip providing greater precision.

The analysis of each reaction area of ​​the chemical strip is carried out with four wavelengths. Its configuration flexibility allows it to be used autonomously, or integrated with particle analyzer and other modules as part of a fully automated solution with a true, fast and high quality diagnosis, combined with a practical and aesthetic design and ease of use is capable of satisfy the most demanding customer..

CHEMISTRY ANALYZER FEATURES

  • System: Fully automated, random access, independent, emergency priority function (STAT).
  • Processing speed: 200 tests / hour, 540 tests / hour (with ISE electrolytes).
  • Optical system: Fully sealed, fixed matrix and spectrophotometry, 10 wavelengths to select (340nm, 405nm, 450nm, 492nm, 510nm, 546nm, 578nm, 630nm, 700nm, 800nm). Wavelength precision is ± 1 nm.
  • Results storage capacity: Storage according to the capacity of the computer.
  • Test methods: Colorimetric end point, speed (kinetic method), 2-point end point (2-point kinetic method), double wavelength, blank method (reagent blank, sample blank and water white), immunoturbidimetry, double reagent , non-linear detection.,
  • Calibration method: Linear calibration (1 point, 2 points and multipoint) and non-linear calibration. Multiple calibration formulas Logit-Log4P, Logit-Log5P and exponential function, spline, 5P exponential, parabola, Wei Bull, K-factor.
  • Reagent carousel: Refrigerated (2-8 ºC) with 60 positions for reagents
  • Reaction carousel: 120 fixed, self-cleaning reaction cuvettes.
  • Controlled temperature 37 ºC ± 0.1 ºC.
  • Flushing system: Unique flushing system for the aspiration needle and stirrer probe and eight-phase flushing system for reaction cuvettes.
  • Sample volume: 2μL to 100μL, variable in 0.1μL.
  • Reaction volume: 150μL ~ 900μL
  • Light source: Halogen lamp, 12V / 20W
  • Water consumption: ≤ 4L / H
  • Power: AC100V-240V, 50/60 Hz
  • Operating temperature: 10 ºC ~ 35 ºC, Relative humidity: 40 ºC ~ 85 ºC

WHY CHOOSE LABOTECK?

Laboteck offer fully automated chemistry analyser product, its high performance, great work capacity and excellent quality in the results obtained make this equipment unique in its field. Laboteck provide high-quality measurement, supervision and regulation solutions and products in the area of ​​ laboratories, medical, education and industries. People are our strength and the greatest value – both our employees and professional business partners, to whom we provide service and support at the highest possible level. We are convinced that joining it with full commitment is the condition for effective action. Today for us it is more than important to cover the needs demanded by our clients, who are increasingly professional and demanding. We make every effort to ensure that our products and information about them, as well as our committed employees are available to our partners whenever the need arises.



ModelYS-600
Overall

Performance

Throughput600Tests/hour
Analysis MethodEnd-point, Fixed-time, Rate, Two-point, Turbidimetry
CertificationCE, FDA, ISO9001, ISO14001, ISO13485


Sample & Reagent System

Sample Positions90sample positions, built-in barcode system available
Reagent Positions180refrigerated reagent positions(R1:45 & R2:45)
Sample Volume2~70μl
Reagent Volume20~350μl
ProbeTeflon coating ,with anti-collision function, liquid leveldetection function
Probe WashingAutomatic washing interior and exterior
Reagent CoolingRefrigerated tray with independent switch


Reaction System

Temperature Control37±0.1℃, real-time monitoring
Cuvettes120reusable cuvettes, optical length 6mm
Mixer ProbeIndependent stirring
WashingAutomatic cuvettes washing
STAT functionYES
Optical SystemLight Source12V/30W halogen lamp
SpectrophotometryPost-spectral spectrophotometry
Wavelength340,405,450,510,546,578,630,700nm
Absorbance0~3.0Abs
Calibration & QCCalibration1-point, 2-point and multipoint, factor, Spline Logit-4P, Logit-5P
Quality ControlInserting quality control at random
Data ManagementSoftwareWindows 7/8/10
LIS SystemAvailable
InterfaceLAN port access
PrinterExternal,multiple reporting mode available
 Working ConditionsPower SupplyAC220V±10%,50/60Hz, 110V±10%,60Hz, 300W
Temperature10~30℃
Water ConsumptionDeionized water:15L/H
Humidity30-80%
Size & WeightExternal Size (W*D*H)1167*780*1016mm
Net Weight216kg
Package Size (W*D*H)1348*928*1399mm
Gross Weight290kg
Accessory Package Size678*624*548mm
Accessory Gross Weight70kg

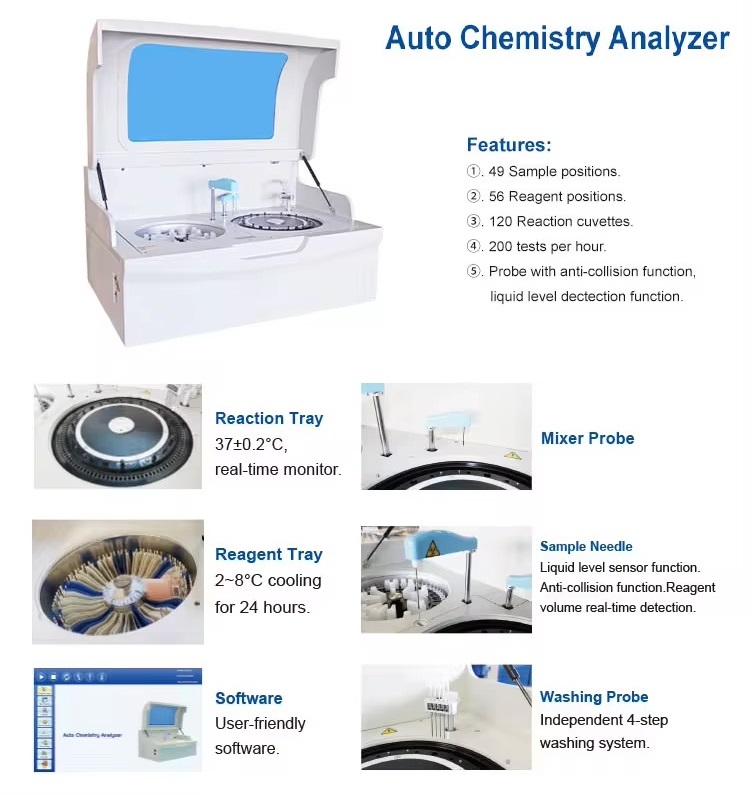

Model YS-200
Overall

Performance

Throughput200Tests/Hour
Analysis MethodEnd-point, Fixed-time, Rate (Kinetic), Turbidimetry
CertificatesCE, FDA, ISO9001, ISO14001, ISO13485
Sample & Reagent UnitSample Positions 49 sample positions
Reagent Positions 56 reagent positions
Sample Volume 2~70μl
Reagent Volume 20~350μl
Probe Teflon coating, within-collision function, liquid level detection function.
Probe washing Automatic washing interior and exterior
Reagent Cooling Refrigerated tray with independent switch
Reaction SystemTemperature Control 37±0.1℃, real-time monitor
Cuvettes 120 reusable cuvettes, optical length 6mm
Mixer Probe Independent stirring
Washing Automatic cuvettes washing
STAT functionYES
Optical SystemLight Source 12V/30W halogen lamp
Spectrophotometry Post-spectral spectrophotometry
Wavelength 340,405,450,510,546,578,630,700nm
Absorbance 0~3.0Abs
Calibration & QCCalibrationLinear: K factor, 1-point, 2-point and multipoint linear

Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P, Logit-5P

Quality Control Real-time QC, Westgard multi rule, Cumulative sum check, Twin Plot(2D)
Data ManagementSoftware Windows 7/8/10, LIS system available
LIS System Bi-direction, support HL7 protocol
Interface LAN port access
PrinterExternal, multiple reporting mode available
Working ConditionsPower Supply AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W
Temperature10~30℃
Water ConsumptionDeionized water:5L/H
Humidity30-80%
Size & WeightExternal Size (W*D*H)950*612*510mm
Net Weight75kg
Package Size(W*D*H) 1118*728*1151mm
Gross Weight 130kg





ModelYS-100vet
Sample TypeWhole blood, serum, plasma
Sample Volume100ul
Bar CodeTwo-dimensional bar code
Testing Time12 minutes per sample
Reaction Temperature37℃±0.2℃
QC & CalibrationReal time full-automatic finish
Working ConditionTemperature: 10-32℃ Humidity: <90%
Light Source12V/20W, halogen lamp (average lifespan>2500 hours)
Input VoltageAC100-240V, 50-60Hz (DC power supply optional)
Power Consumption70Watt
Display7 inches TFT touch screen
Storage>100,000 results
Printer4 USB, 1 RS232
Net Weight5KG
Dimensions (W*D*H)21*28*31cm
Package Size(W*D*H)35*28*40mm
Gross Weight6.5kg







ModelYatherm – Silver Plus
Reading CuvetteBoth through cell and direct reading cuvette
Incubating Positions20 incubation positions
Photometric SystemLight source: 6V, 10W  halogen lamp
Filters: 340,405,492,510,546,578,620nm, 2 more open filter positions,

±2nm pass-hand

Wavelength accuracy:±2nm
Measuring SystemMeasuring range: 0~2.500 OD
Photometric linearity:±2% from 0 to 2.000 OD
Photometric accuracy:±2% from 0 to 2.001 OD
Drift<0.005 OD
Carry over≤1%
Incubator Temperature ControlRT+25℃, 30℃, 37℃
Precision: ±0.1℃
Display/KeyboardTouch Screen
PrinterBuilt-in thermal printer
InterfaceRS-232,USB
Power SupplyAC110/220V±10% 60/50Hz,
External Size (W*D*H)340*380*180mm
Package Size (W*D*H)575*490*350mm
Gross Weight19Kg
